Support dual-transmitter mode, all receivers can listen to two transmitters
Adopt the international legal common 2.4GHz technology
Transmission distance up to 150m in open space
One key to mute
One button to turn off all receivers
With AUX interface, support external audio device input
TT106 ear-mounted receiver design is lightweight, no need to insert into the ear so it is more clean and hygienic
Long standby time
The transmitter has a built-in 1300mAh rechargeable lithium battery, which can be used continuously for 25H with 3H full charge, and the receiver has a built-in 380mAh rechargeable lithium battery, which can be used for 23H with 2H full charge.
AUX input jack
The transmitter supports 3.5mAUX input, which can be connected to MP3, PC, cell phone and other audio devices to play background music or pre-recorded voice files.
Support 2 transmitters working at the same time
The receiver can hear voice messages from both transmitters on the same channel. This audio tour guide device can serve you better in events that require two docents.
Support 9999 tours working in the same area at the same time, you don't have to worry about interference at all.

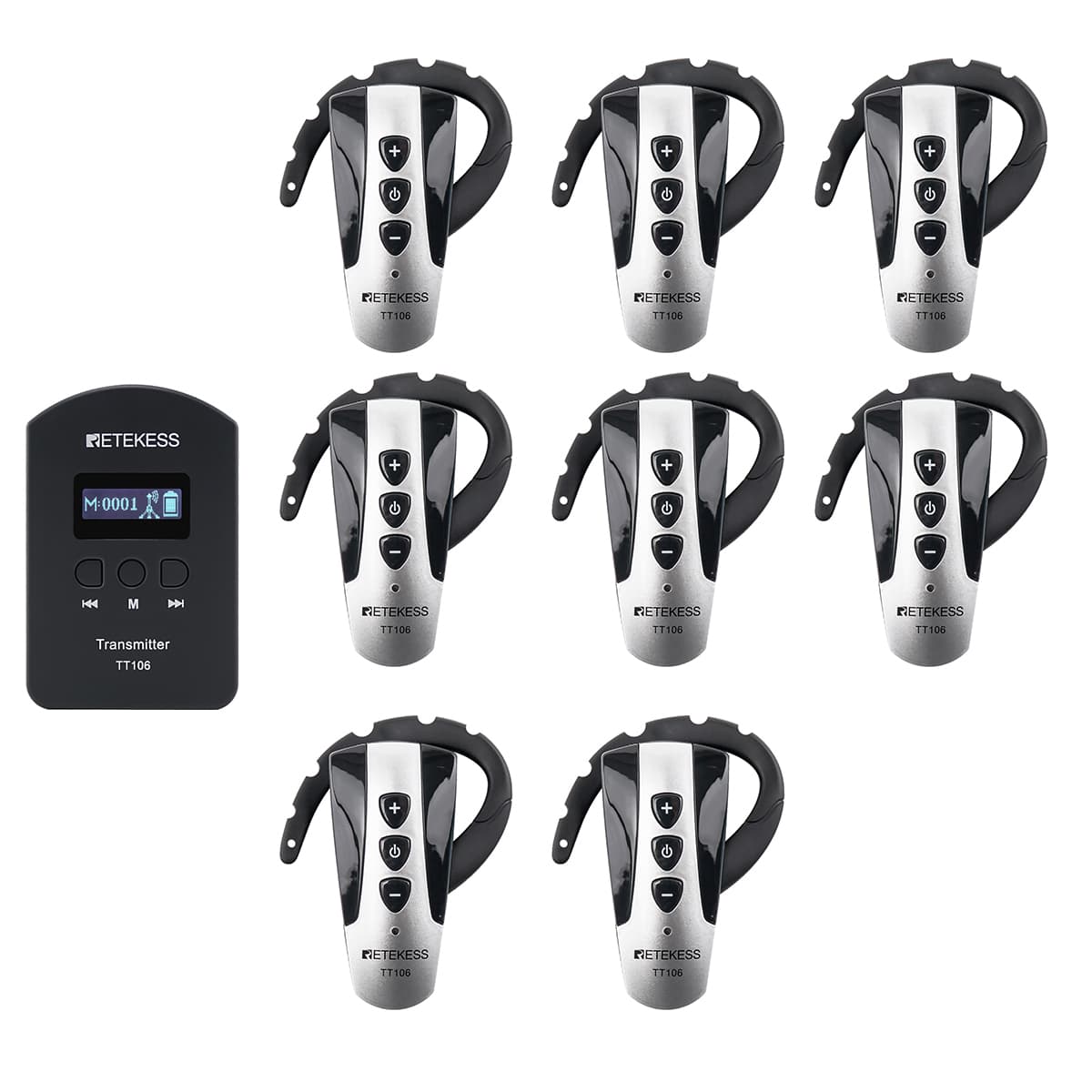

An unlimited number of receivers can be paired with the tour guide transmitter, so when your group size expands, you just need to add receivers as needed.
Long transmission distance
The wireless audio guide system has been tested to transmit up to 150 meters, so your audience can be spread out within 150 meters of the transmitter without having to be crowded together.
Please fill in your procurement needs and contact information

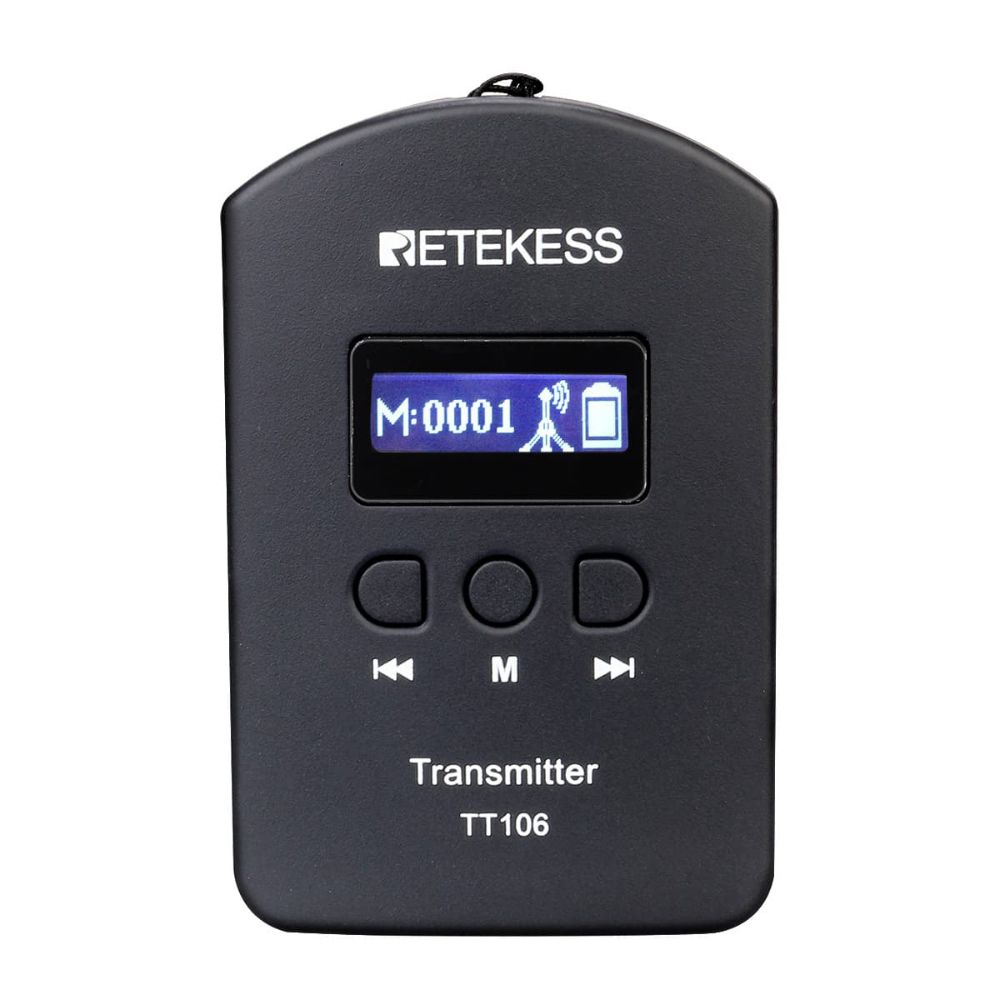

|TT106 Wireless Transmitter||TT106 Wireless Receiver|
|Frequency Range||2400~2483MHz||Frequency Range||2400~2483MHz|
|ID Number||9999||ID Number||9999|
|Supply Voltage||DC3.7V||Supply Voltage||DC3.7V|
|Frequency stability||±0.001﹪||Frequency stability||±0.001﹪|
|Charge time||3H||Charge time||2H|
|Working time||25H||Working time||23H|
|Battery specification||3.7V/1300mA||Battery Specification||3.7V/380mA|
|Charge Jack||MINI USB||Charge Jack||MINI USB|
|Modulation frequency deviation||±320KHz||Modulation frequency deviation||±320KHz|
|Working current||62mA||Working current||15mA|
|Communication range||150m (open air)||Standby current||1mA|
|Charging voltage||DC5V||Charging current||320mA|
|Communication range||150m (open air)|
